Test clamp

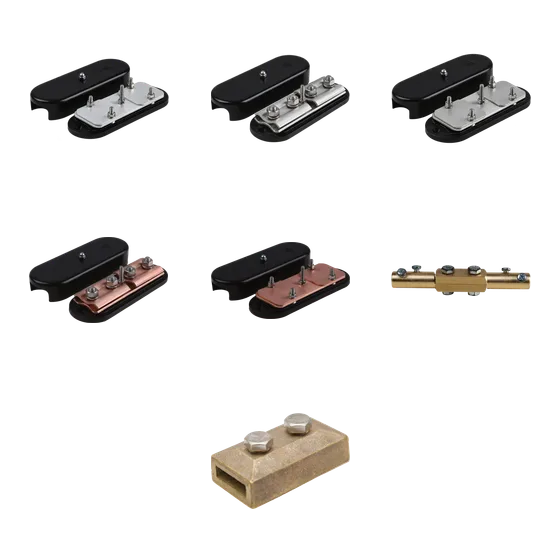

Test clamp. Material: Copper / Aluminum / Steel / Brass. Compare material, connection conductor, weight options in the product code table below.
Source: Terra product catalog, page 23View product specifications
Product codes and technical options
Click a product code in the table to open its product page and download the datasheet for that code.
| Product code | Material | Connection conductor | Weight |
|---|---|---|---|
| TLP 12401 ↗ | Copper | 1x25 mm² | 0,34 kg |
| TLP 12403 ↗ | Copper | 1x50 mm² | 0,35 kg |
| TLP 12404 ↗ | Copper | 1x70 mm² | 0,38 kg |
| TLP 12405 ↗ | Copper | 2x50 mm² | 0,36 kg |
| TLP 12411 ↗ | Copper | 20x3 mm | 0,28 kg |
| TLP 12413 ↗ | Copper | 25x3 mm | 0,28 kg |
| TLP 12415 ↗ | Copper | 30x3 mm | 0,28 kg |
| TLP 12420 ↗ | Copper | LICON 35 | 0,28 kg |
| TLP 12427 ↗ | Aluminum | 30x3 mm | 0,24 kg |
| TLP 12525 ↗ | Steel | 2x50 mm² | 0,37 kg |
| TLP 12526 ↗ | Steel | 30x3 mm | 0,26 kg |
| TLP 12555 ↗ | Brass | 1x50 mm² | 0,15 kg |
| TLP 12572 ↗ | Brass | 25x3 mm | 0,23 kg |
| TLP 12574 ↗ | Brass | 30x3 mm | 0,23 kg |
Applications
Provides an accessible test point between the down-conductor route and the earth connection, supporting periodic measurement and maintenance.
Technical support and documents
Share the installation location and connection you need so our technical team can help select products, dimensions and mounting options. Include drawing and document requests with your quote.
Choose products for your project
Technical options: Material · Connection conductor · Weight.
- Choose conductor material and size for the design, and clamp dimensions for the tape or mono.
- Plan the route so the test clamp can be reached for periodic measurements.
