Insulating Mat

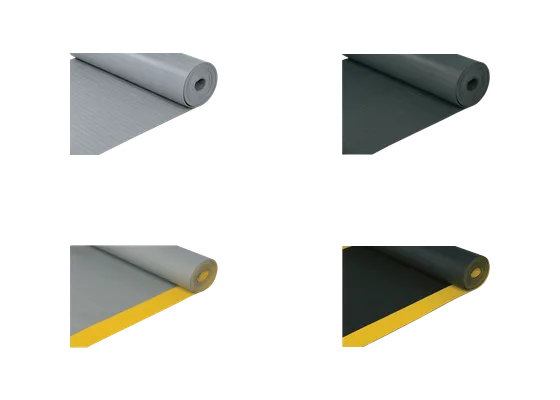

Insulating Mat. Compare thickness, usage voltage, colour options in the product code table below.
Source: Terra product catalog, page 71View product specifications
Product codes and technical options
Click a product code in the table to open its product page and download the datasheet for that code.
| Product code | Thickness | Usage voltage | Colour | Yellow warning band |
|---|---|---|---|---|
| TES 36537 ↗ | 2 mm | 1 kV | Siyah - Black | Yok - Not Available |
| TES 36538 ↗ | 2 mm | 10 kV | Siyah - Black | Yok - Not Available |
| TES 36539 ↗ | 3 mm | 20 kV | Siyah - Black | Yok - Not Available |
| TES 36540 ↗ | 5 mm | 36 kV | Siyah - Black | Yok - Not Available |
| TES 36541 ↗ | 2 mm | 10 kV | Gri - Gray | Yok - Not Available |
| TES 36542 ↗ | 3 mm | 20 kV | Gri - Gray | Yok - Not Available |
| TES 36543 ↗ | 5 mm | 36 kV | Gri - Gray | Yok - Not Available |
| TES 36544 ↗ | 2 mm | 10 kV | Siyah - Black | Var - Available |
| TES 36545 ↗ | 3 mm | 20 kV | Siyah - Black | Var - Available |
| TES 36546 ↗ | 5 mm | 36 kV | Siyah - Black | Var - Available |
| TES 36547 ↗ | 2 mm | 10 kV | Gri - Gray | Var - Available |
| TES 36548 ↗ | 3 mm | 20 kV | Gri - Gray | Var - Available |
| TES 36549 ↗ | 5 mm | 36 kV | Gri - Gray | Var - Available |
Applications
Used during maintenance around panels, switchgear and electrical installations. Insulating and earthing equipment are considered within the safe working plan.
Technical support and documents
Share the installation location and connection you need so our technical team can help select products, dimensions and mounting options. Include drawing and document requests with your quote.
Choose products for your project
Technical options: Thickness · Usage voltage · Colour · Yellow warning band.
- Select glove class and mat operating voltage for the installation voltage and task.
- Choose size, dimensions and cable length for the work area, and plan periodic testing.
Catalogue sources: 71
