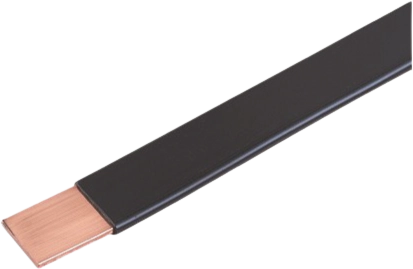

Tape conductor
Copper conductor in 25 x 3 mm. Weight: 0.770 kg/m.
Source: Terra product catalog, page 44Download datasheet
Technical specifications
| Product code | TES 20605 |
|---|---|
| Material | Copper |
| PVC coating | Yes |
| Type | Tape |
| Colour | Black |
| Conductor dimensions | 25 x 3 mm |
| Length | 50 m |
| Weight | 0.770 kg/m |
Conductor and equipment applications
Copper Tape Conductor
PVC-covered copper tape is considered for earthing connection routes specifying a covered conductor. Select terminations and conductor dimensions for the installation detail.
Applications
Used for earthing panels and machine enclosures, equipotential bonding and site networks. Clamps join conductors; lugs terminate cables at bolted points.
Technical support and documents
Share the installation location and connection you need so our technical team can help select products, dimensions and mounting options. Include drawing and document requests with your quote.
Choose products for your project
- Choose conductor cross-section for the design and connectors for the cable, tape or mono dimensions.
- Consider the environment when selecting material and coating for buried and outdoor connections.
Catalogue sources: 44
