TERRA / Earthing Sockets

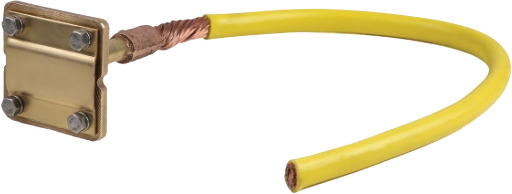

Four Holes Earthing Point (Cable Welded)
Material: Bronze. Screw sizes: M8 x 15 - 80 (+500) 70 mm² cable mm. Weight: 0,76 kg.
Source: Terra product catalog, page 69Download datasheet
Technical specifications
- Product code
- TES 36906
- Material
- Bronze
- Screw sizes
- M8 x 15 - 80 (+500) 70 mm² cable mm
- Weight
- 0,76 kg
Applications
Used to connect foundation earthing to internal bonding and where a connection point is needed at a concrete surface.
Technical support and documents
Share the installation location and connection you need so our technical team can help select products, dimensions and mounting options. Include drawing and document requests with your quote.
Choose products for your project
Technical options: Material · Screw sizes · Weight.
- Choose terminal length and connection form for concrete thickness, installation detail and the conductor.
- Match hole diameter, screw size and connection count with the lugs and hardware.
Catalogue sources: 69
