TERRA / Down Conductors and Accessories
L Clamp

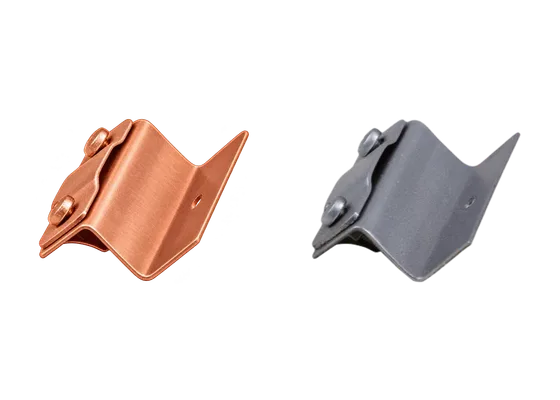

L Clamp. Material: Copper / Steel. Compare material, connection conductor, weight options in the product code table below.
Source: Terra product catalog, page 26View product specifications
Product codes and technical options
Click a product code in the table to open its product page and download the datasheet for that code.
| Product code | Material | Connection conductor | Mounting hole diameter (Ø) | Weight |
|---|---|---|---|---|
| TLP 13955 ↗ | Copper | 20x3 mm | M6 | 0,10 kg |
| TLP 13957 ↗ | Copper | 25x3 mm | M6 | 0,10 kg |
| TLP 13959 ↗ | Copper | 30x3 mm | M6 | 0,11 kg |
| TLP 13979 ↗ | Steel | 30x3 mm | M6 | 0,10 kg |
| TLP 13984 ↗ | Steel | 40x4 mm | M6 | 0,11 kg |
| TLP 13985 ↗ | Steel | 40x5 mm | M6 | 0,12 kg |
Applications
Used along façades between the roof and earth connection. Tape and monos are selected with fixings suited to the façade.
Technical support and documents
Share the installation location and connection you need so our technical team can help select products, dimensions and mounting options. Include drawing and document requests with your quote.
Choose products for your project
Technical options: Material · Connection conductor · Mounting hole diameter (Ø) · Weight.
- Choose conductor material and size for the design, and clamp dimensions for the tape or mono.
- Plan the route so the test clamp can be reached for periodic measurements.
Catalogue sources: 26
