TERRA / Down Conductors and Accessories
U Clamp

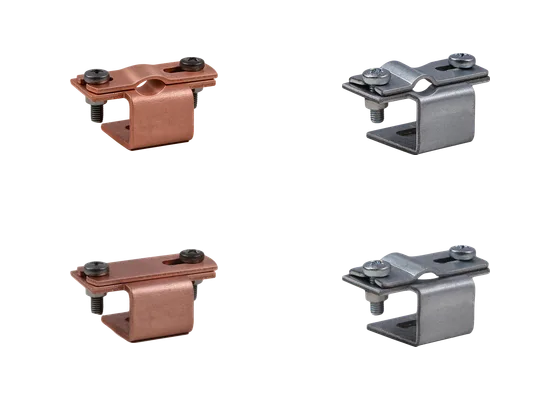

U Clamp. Material: Copper / Steel. Compare material, connection conductor, weight options in the product code table below.
Source: Terra product catalog, page 25View product specifications
Product codes and technical options
Click a product code in the table to open its product page and download the datasheet for that code.
| Product code | Material | Connection conductor | Mounting hole diameter (Ø) | Weight |
|---|---|---|---|---|
| TLP 13845 ↗ | Copper | 1x16 mm² | M6 | 0,06 kg |
| TLP 13850 ↗ | Copper | 1x35 mm² | M6 | 0,06 kg |
| TLP 13851 ↗ | Copper | 1x50 mm² | M6 | 0,06 kg |
| TLP 13853 ↗ | Copper | 1x70 mm² | M6 | 0,06 kg |
| TLP 13855 ↗ | Copper | 1x95 mm² | M6 | 0,07 kg |
| TLP 13857 ↗ | Copper | 1x120 mm² | M6 | 0,07 kg |
| TLP 13858 ↗ | Copper | 1x150 mm² | M6 | 0,08 kg |
| TLP 13873 ↗ | Copper | 25x3 mm | M6 | 0,05 kg |
| TLP 13875 ↗ | Copper | 30x3 mm | M6 | 0,05 kg |
| TLP 13877 ↗ | Copper | 30x5 mm | M6 | 0,05 kg |
| TLP 13879 ↗ | Copper | 40x4 mm | M6 | 0,08 kg |
| TLP 13881 ↗ | Copper | 50x5 mm | M6 | 0,08 kg |
| TLP 13901 ↗ | Steel | 1x50 mm² | M6 | 0,05 kg |
| TLP 13902 ↗ | Steel | 1x70 mm² | M6 | 0,05 kg |
| TLP 13904 ↗ | Steel | 1x95 mm² | M6 | 0,06 kg |
| TLP 13925 ↗ | Steel | 30x3 mm | M6 | 0,05 kg |
| TLP 13929 ↗ | Steel | 40x4 mm | M6 | 0,07 kg |
| TLP 13931 ↗ | Steel | 50x5 mm | M6 | 0,07 kg |
Applications
Used along façades between the roof and earth connection. Tape and monos are selected with fixings suited to the façade.
Technical support and documents
Share the installation location and connection you need so our technical team can help select products, dimensions and mounting options. Include drawing and document requests with your quote.
Choose products for your project
Technical options: Material · Connection conductor · Mounting hole diameter (Ø) · Weight.
- Choose conductor material and size for the design, and clamp dimensions for the tape or mono.
- Plan the route so the test clamp can be reached for periodic measurements.
Catalogue sources: 25
