TERRA / Earthing Bars and Accessories
Equipotential Bar

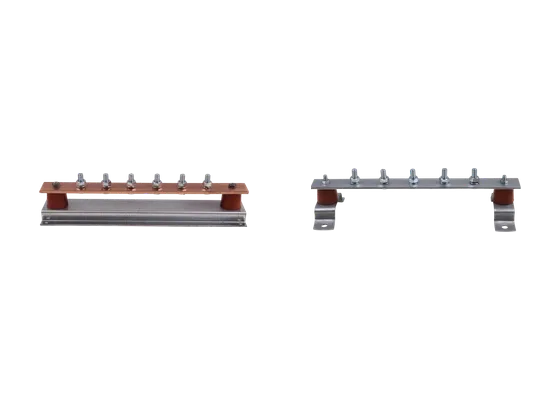

Equipotential Bar. Material: Copper / Steel. Compare material, number of holes, dimensions options in the product code table below.
Source: Terra product catalog, page 53View product specifications
Product codes and technical options
Click a product code in the table to open its product page and download the datasheet for that code.
| Product code | Material | Number of holes | Dimensions | Weight | Additional properties |
|---|---|---|---|---|---|
| TES 23714 ↗ | Copper | 4 | 25 x 5 x 250 mm | 0,53 kg | — |
| TES 23715 ↗ | Copper | 10 | 25 x 5 x 500 mm | 0,89 kg | — |
| TES 23721 ↗ | Copper | 6 | 30 x 3 x 300 mm | 0,53 kg | — |
| TES 23723 ↗ | Copper | 10 | 30 x 3 x 500 mm | 0,75 kg | — |
| TES 23727 ↗ | Copper | 6 | 30 x 5 x 300 mm | 0,68 kg | — |
| TES 23728 ↗ | Copper | 8 | 30 x 5 x 400 mm | 0,84 kg | — |
| TES 23729 ↗ | Copper | 10 | 30 x 5 x 500 mm | 1,00 kg | — |
| TES 23740 ↗ | Copper | 6 | 40 x 5 x 300 mm | 0,93 kg | — |
| TES 23741 ↗ | Copper | 10 | 40 x 5 x 500 mm | 1,33 kg | — |
| TES 23748 ↗ | Copper | 6 | 50 x 5 x 300 mm | 1,06 kg | — |
| TES 23749 ↗ | Copper | 10 | 50 x 5 x 500 mm | 1,56 kg | — |
| TES 24121 ↗ | Steel | 6 | 30 x 3 x 300 mm | 0,51 kg | Zinc coating: Yes |
| TES 24123 ↗ | Steel | 10 | 30 x 3 x 500 mm | 0,80 kg | Zinc coating: Yes |
| TES 24127 ↗ | Steel | 6 | 30 x 5 x 300 mm | 0,65 kg | Zinc coating: Yes |
| TES 24140 ↗ | Steel | 6 | 40 x 5 x 300 mm | 0,89 kg | Zinc coating: Yes |
| TES 24146 ↗ | Steel | 10 | 40 x 5 x 500 mm | 1,29 kg | Zinc coating: Yes |
Applications
Used at main earthing points, in panel rooms and for industrial bonding. Bringing conductors to one point makes inspection and maintenance access easier.
Technical support and documents
Share the installation location and connection you need so our technical team can help select products, dimensions and mounting options. Include drawing and document requests with your quote.
Choose products for your project
Technical options: Material · Number of holes · Dimensions · Weight · Zinc coating.
- Set the connection count to cover existing conductors and planned additions.
- Choose bar size, connection holes and supports to suit the lugs and available space.
Catalogue sources: 53
