TERRA / Earthing Bars and Accessories

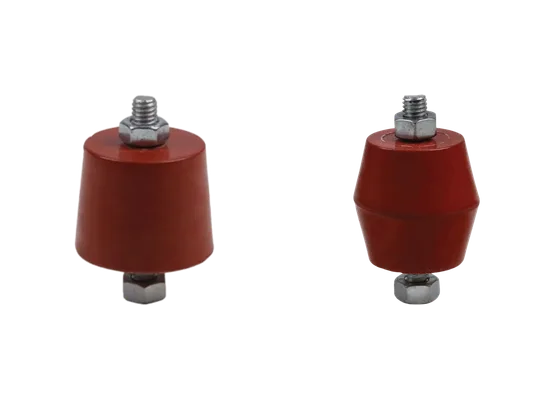

Insulator
Insulator. Material: Steel Bolt. Compare sizes, weight options in the product code table below.
Source: Terra product catalog, page 55View product specifications
Product codes and technical options
Click a product code in the table to open its product page and download the datasheet for that code.
| Product code | Material | Sizes | Weight |
|---|---|---|---|
| TES 26439 ↗ | Steel Bolt | M12 mm | 0,15 kg |
| TES 26441 ↗ | Steel Bolt | M10 mm | 0,13 kg |
| TES 26442 ↗ | Steel Bolt | M8 mm | 0,10 kg |
| TES 26440 ↗ | Steel Bolt | M6 mm | 0,04 kg |
Applications
Used at main earthing points, in panel rooms and for industrial bonding. Bringing conductors to one point makes inspection and maintenance access easier.
Technical support and documents
Share the installation location and connection you need so our technical team can help select products, dimensions and mounting options. Include drawing and document requests with your quote.
Choose products for your project
Technical options: Material · Sizes · Weight.
- Set the connection count to cover existing conductors and planned additions.
- Choose bar size, connection holes and supports to suit the lugs and available space.
Catalogue sources: 55
