TERRA / Down Conductors and Accessories

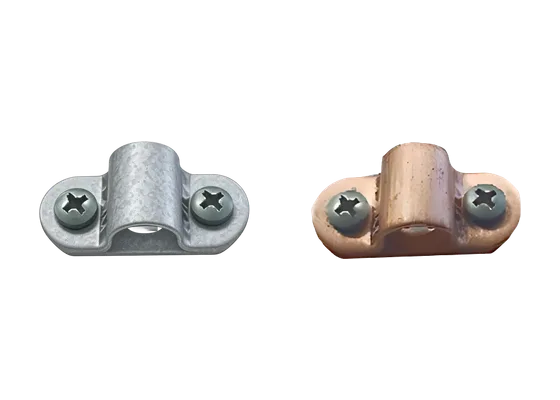

Eco Type Clamp
Eco Type Clamp. Material: Copper / Steel. Compare material, connection conductor, weight options in the product code table below.
Source: Terra product catalog, page 30View product specifications
Product codes and technical options
Click a product code in the table to open its product page and download the datasheet for that code.
| Product code | Material | Connection conductor | Mounting hole diameter (Ø) | Weight | Additional properties |
|---|---|---|---|---|---|
| TLP 14307 ↗ | Copper | 25 mm² | M6 | 0,04 kg | — |
| TLP 14309 ↗ | Copper | 35 mm² | M6 | 0,04 kg | — |
| TLP 14311 ↗ | Copper | 50 mm² | M6 | 0,04 kg | — |
| TLP 14313 ↗ | Copper | 70 mm² | M6 | 0,04 kg | — |
| TLP 14315 ↗ | Copper | 95 mm² | M6 | 0,05 kg | — |
| TLP 14317 ↗ | Steel | 120 mm² | M6 | 0,05 kg | Zinc coating: Yes |
| TLP 14341 ↗ | Steel | 50 (Ø 8) mm | M6 | 0,04 kg | Zinc coating: Yes |
| TLP 14343 ↗ | Steel | 70 mm² | M6 | 0,04 kg | Zinc coating: Yes |
| TLP 14345 ↗ | Steel | 95 mm² | M6 | 0,04 kg | Zinc coating: Yes |
Applications
Used along façades between the roof and earth connection. Tape and monos are selected with fixings suited to the façade.
Technical support and documents
Share the installation location and connection you need so our technical team can help select products, dimensions and mounting options. Include drawing and document requests with your quote.
Choose products for your project
Technical options: Material · Connection conductor · Mounting hole diameter (Ø) · Weight · Zinc coating.
- Choose conductor material and size for the design, and clamp dimensions for the tape or mono.
- Plan the route so the test clamp can be reached for periodic measurements.
Catalogue sources: 30
