TERRA / Down Conductors and Accessories
Pole Clamp

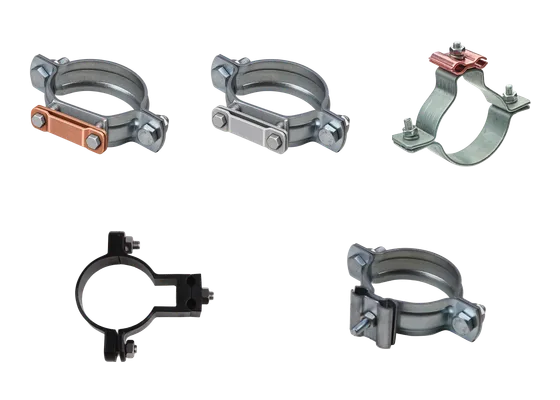

Pole Clamp. Material: Copper / PVC / Steel. Compare material, pole diameter / connection conductor, weight options in the product code table below.
Source: Terra product catalog, page 31View product specifications
Product codes and technical options
Click a product code in the table to open its product page and download the datasheet for that code.
| Product code | Material | Pole diameter / connection conductor | Weight |
|---|---|---|---|
| TLP 15010 ↗ | Copper | 2,00 in - 2x50 mm² | 0,16 kg |
| TLP 15012 ↗ | Copper | 2,50 in - 2x50 mm² | 0,17 kg |
| TLP 15014 ↗ | Copper | 3,00 in - 2x50 mm² | 0,18 kg |
| TLP 15025 ↗ | Copper | 2,00 in - 25x3 mm | 0,16 kg |
| TLP 15026 ↗ | Copper | 2,00 in - 30x3 mm | 0,17 kg |
| TLP 15027 ↗ | Copper | 2,50 in - 25x3 mm | 0,18 kg |
| TLP 15028 ↗ | Copper | 2,50 in - 30x3 mm | 0,30 kg |
| TLP 15029 ↗ | Copper | 3,00 in - 25x3 mm | 0,21 kg |
| TLP 15051 ↗ | PVC | 2,00 in - 2x50 mm² | 0,10 kg |
| TLP 15053 ↗ | PVC | 2,50 in - 2x50 mm² | 0,11 kg |
| TLP 15061 ↗ | Steel | 2,00 in - 1x50 mm² | 0,16 kg |
| TLP 15063 ↗ | Steel | 2,00 in - 1x70 mm² | 0,16 kg |
| TLP 15064 ↗ | Steel | 2,00 in - 1x95 mm² | 0,16 kg |
| TLP 15065 ↗ | Steel | 2,00 in - 2x50 mm² | 0,16 kg |
| TLP 15066 ↗ | Steel | 2,50 in - 2x50 mm² | 0,19 kg |
| TLP 15068 ↗ | Steel | 2,00 in - 30x3 mm | 0,16 kg |
Applications
Used along façades between the roof and earth connection. Tape and monos are selected with fixings suited to the façade.
Technical support and documents
Share the installation location and connection you need so our technical team can help select products, dimensions and mounting options. Include drawing and document requests with your quote.
Choose products for your project
Technical options: Material · Pole diameter / connection conductor · Weight.
- Choose conductor material and size for the design, and clamp dimensions for the tape or mono.
- Plan the route so the test clamp can be reached for periodic measurements.
Catalogue sources: 31
