TERRA / Down Conductors and Accessories
Pylon Clamp

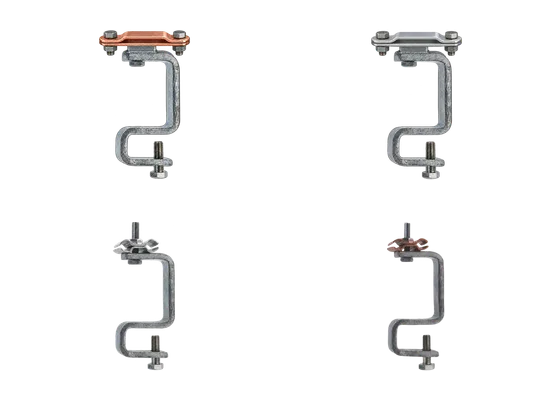

Pylon Clamp. Material: Copper / Steel. Compare material, connection conductor, weight options in the product code table below.
Source: Terra product catalog, page 29View product specifications
Product codes and technical options
Click a product code in the table to open its product page and download the datasheet for that code.
| Product code | Material | Connection conductor | Weight |
|---|---|---|---|
| TLP 14751 ↗ | Copper | 1x50 mm² | 0,17 kg |
| TLP 14753 ↗ | Copper | 1x95 mm² | 0,17 kg |
| TLP 14757 ↗ | Copper | 2x50 mm² | 0,19 kg |
| TLP 14758 ↗ | Copper | 2x70 mm² | 0,19 kg |
| TLP 14759 ↗ | Copper | 25x3 mm | 0,21 kg |
| TLP 14762 ↗ | Copper | 30x3 mm | 0,21 kg |
| TLP 14765 ↗ | Steel | 1x50 mm² | 0,17 kg |
| TLP 14767 ↗ | Steel | 1x70 mm² | 0,17 kg |
| TLP 14780 ↗ | Steel | 2x50 mm² | 0,18 kg |
| TLP 14782 ↗ | Steel | 2x70 mm² | 0,19 kg |
| TLP 14792 ↗ | Steel | 30x3 mm | 0,21 kg |
| TLP 14794 ↗ | Steel | 40x4 mm | 0,22 kg |
Applications
Used along façades between the roof and earth connection. Tape and monos are selected with fixings suited to the façade.
Technical support and documents
Share the installation location and connection you need so our technical team can help select products, dimensions and mounting options. Include drawing and document requests with your quote.
Choose products for your project
Technical options: Material · Connection conductor · Weight.
- Choose conductor material and size for the design, and clamp dimensions for the tape or mono.
- Plan the route so the test clamp can be reached for periodic measurements.
Catalogue sources: 29
