TERRA / Down Conductors and Accessories
Steel Screwed Clamp

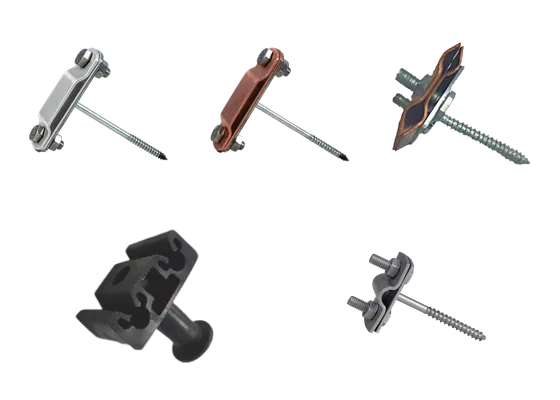

Steel Screwed Clamp. Material: Copper / PVC / Steel. Compare material, connection conductor, mounting dimension options in the product code table below.
Source: Terra product catalog, page 28View product specifications
Product codes and technical options
Click a product code in the table to open its product page and download the datasheet for that code.
| Product code | Material | Connection conductor | Fixing plug diameter (mm) | Weight | Additional properties |
|---|---|---|---|---|---|
| TLP 14373 ↗ | Copper | 20x3 mm | 8 | 0,09 kg | — |
| TLP 14375 ↗ | Copper | 25x3 mm | 8 | 0,10 kg | — |
| TLP 14377 ↗ | Copper | 30x3 mm | 8 | 0,11 kg | — |
| TLP 14381 ↗ | Copper | 40x5 mm | 8 | 0,13 kg | — |
| TLP 14383 ↗ | Copper | 1x35 mm² | 8 | 0,05 kg | — |
| TLP 14385 ↗ | Copper | 1x50 mm² | 8 | 0,05 kg | Mounting dimension: 6 cm |
| TLP 14386 ↗ | Copper | 1x50 mm² | 8 | 0,07 kg | Mounting dimension: 10-15 cm |
| TLP 14387 ↗ | Copper | 1x70 mm² | 8 | 0,06 kg | — |
| TLP 14388 ↗ | Copper | 1x95 mm² | 8 | 0,06 kg | — |
| TLP 14389 ↗ | Copper | 1x120 mm² | 8 | 0,07 kg | — |
| TLP 14401 ↗ | Copper | 2x50 mm² | 8 | 0,08 kg | Mounting dimension: 6-10 cm |
| TLP 14403 ↗ | Copper | 2x50 mm² | 8 | 0,11 kg | Mounting dimension: 12-15 cm |
| TLP 14471 ↗ | PVC | 2x50 mm² | 8 | 0,01 kg | — |
| TLP 14565 ↗ | Steel | 1x50 mm² | 8 | 0,05 kg | — |
| TLP 14567 ↗ | Steel | 1x70 mm² | 8 | 0,05 kg | — |
| TLP 14575 ↗ | Steel | 2x50 mm² | 8 | 0,07 kg | — |
| TLP 14577 ↗ | Steel | 2x70 mm² | 8 | 0,09 kg | — |
| TLP 14587 ↗ | Steel | 30x3 mm | 8 | 0,08 kg | — |
| TLP 14589 ↗ | Steel | 40x4 mm | 8 | 0,12 kg | — |
| TLP 14593 ↗ | Steel | 50x5 mm | 8 | 0,14 kg | — |
Applications
Used along façades between the roof and earth connection. Tape and monos are selected with fixings suited to the façade.
Technical support and documents
Share the installation location and connection you need so our technical team can help select products, dimensions and mounting options. Include drawing and document requests with your quote.
Choose products for your project
Technical options: Material · Connection conductor · Fixing plug diameter (mm) · Weight · Mounting dimension.
- Choose conductor material and size for the design, and clamp dimensions for the tape or mono.
- Plan the route so the test clamp can be reached for periodic measurements.
Catalogue sources: 28
